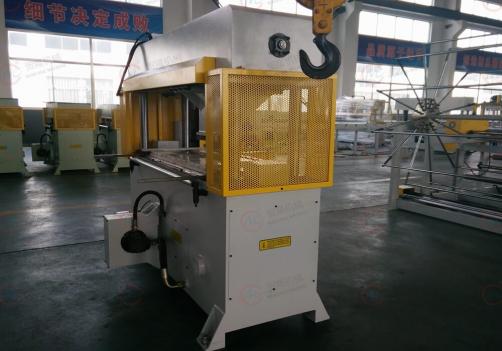

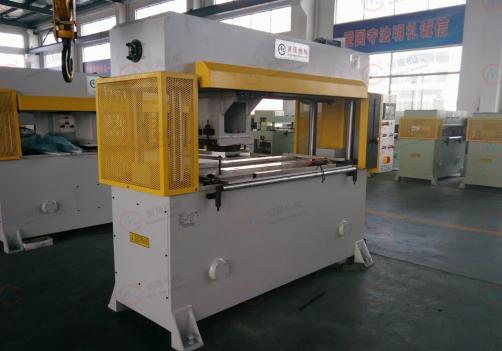

ABC-400 Cross - moving hat-brim cutting press
E-mail: lily@ycmljx.com
  • MACHINE CHARACTERISTICS
  • technical parameters

Product Name

Origin

Brand

Intermediate Relay

Japan

Idec

Cocontactor

France

Schneider

Oil Pump

Zhejiang

Yongling

Oil Cylinder

Yangzhou

Mingsheng

Solenoid Valve

Taiwan

NORTHMAN

Pilot Switch

Taiwan

Tend

Motor

Shanghai

Dedong

Mechanical Capacity:

The cutting press is applicable for blanking with molding cutters single-layer or multi-layernon-metallic materials such as leather, rubber, plastics, cardboard, textile, chemical fibers, non-woven fabrics etc.

1.The cutters move laterally and can be easily controlled by manual button and automatic displacement switch.

2.Gantry construction provides favorable view during operation.

3.Low pressure setting allows short-cut, accurate regulation on cutting travel.

4.The machine tool could also be fitted with digital control system upon user’s request, which features automatic die allocation and blanking, high accuracy and conservation of material, improving the work efficiency and easing the labor.

Model

ABC-400

Maximum Scissoring Force

40T

Sway Arm Width

50-150mm

Distance Between Upper and Lower Table

170mm

Press Board ( length×width )

500×500mm

Effective Work Area

1600×500mm

Main Motor Power

2.2kw
